MC Series Pulse Bag Filter

Application
The equipment is widely used for ventilation and recovering powder dust of metallurgy industry, casting industry, mine, chemical industry, pharmaceutical industry, construction material industry, fed industry and grain processing industry and so on.

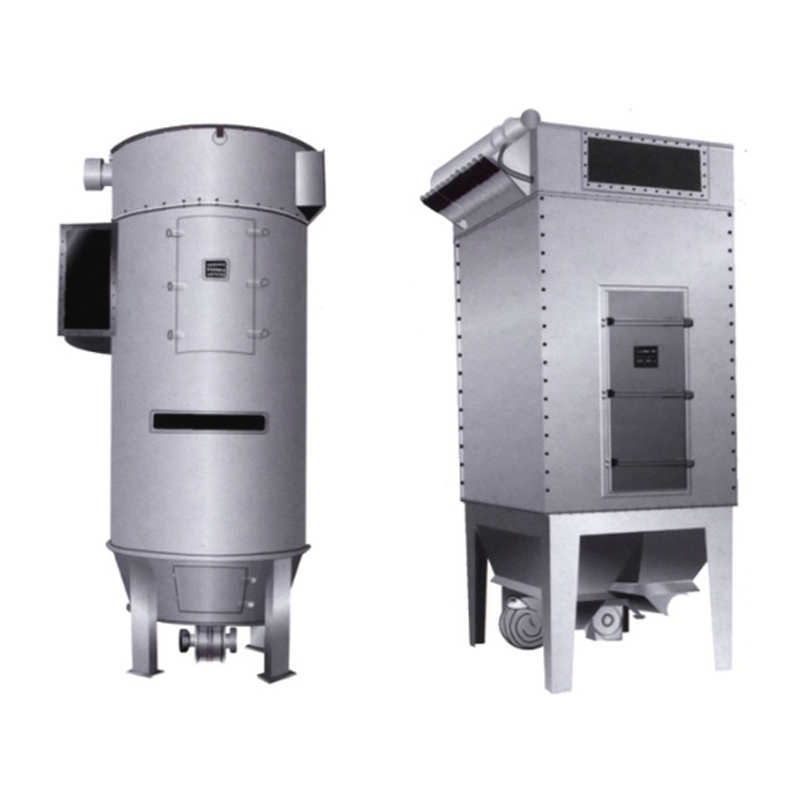

  • MC Series Pulse Bag Filter

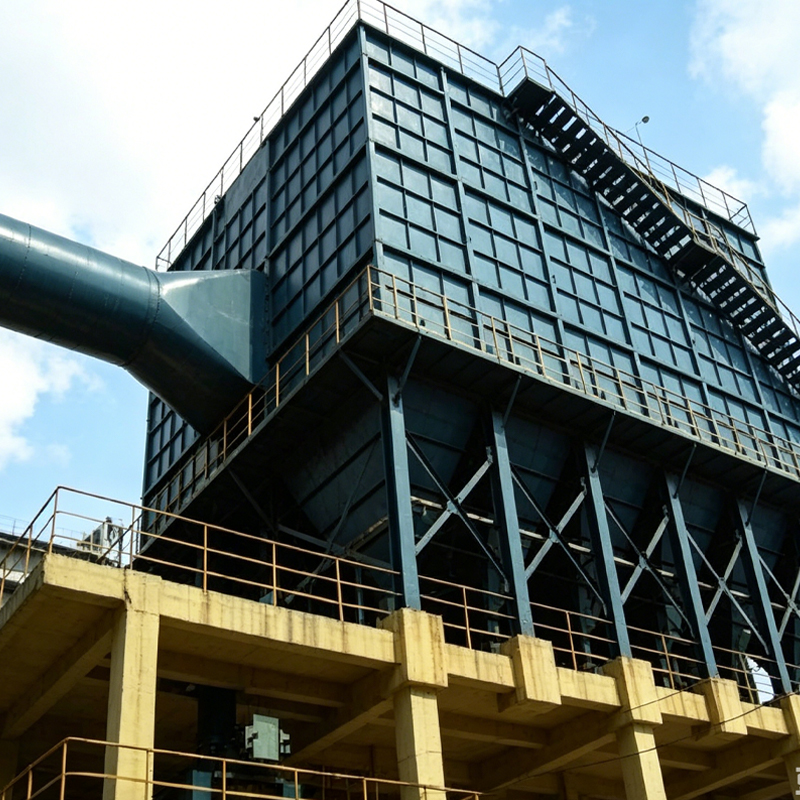

  • MC Series Pulse Bag Filter

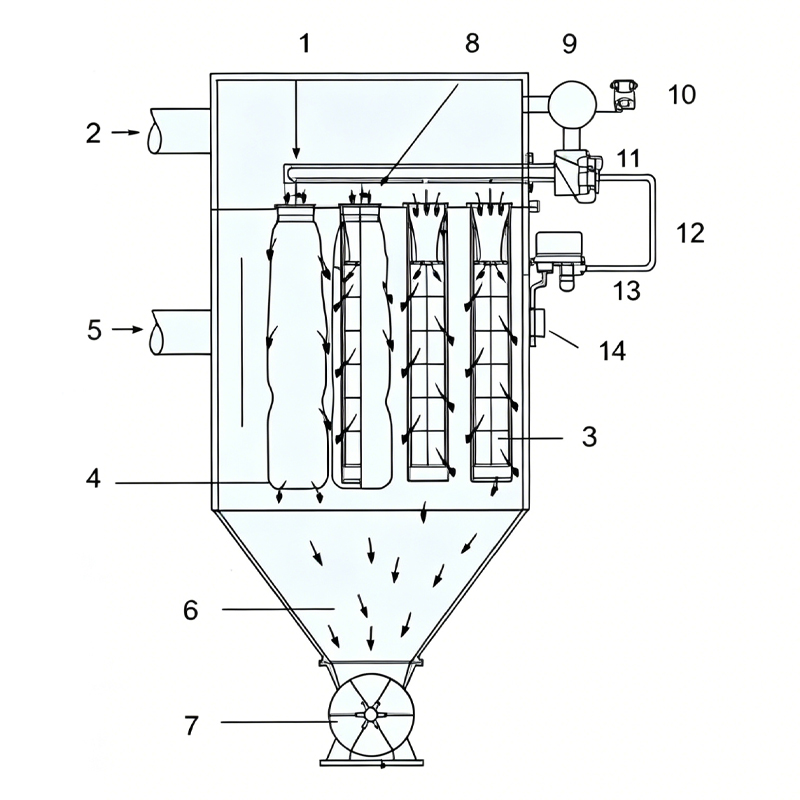

Working Principle

1. Compressed air jet
2. Clean air exhaust
3. Filter housing
4. Filter bag
5. Ditty aur intake
6. Dust collectot hopper
7. Rotary material discharge valce
8. Win,s tube
9. Supply air
10. Pressure switch
11. Diaphragm valve
12. (Auxiliay) air control pipe
13. Magnetic valve
14. Solid state sequential controller

Technical Parameters

Type

Area to be filtered (m²)

Air amount
(m³/h)

Quantily of filtering bag(piece)

Speed of filtering air
(m/min)

Overall dimension   L×W×H
(mm)

Weight (kg)

MC24

18

2160-4320

24

2-4

1090×1678×3667

1433

MC36

27

3240-6480

36

1490×1678×3667

1695

MC48

36

4320-8640

48

1890×1678×3667

1987

MC60

45

5400-10800

60

2290×1678×3667

2326

MC72

54

6480-12960

72

2690×1678×3667

2610

MC84

63

7560-15120

84

3090×1678×3667

2870

MC96

72

8640-17280

96

3650×1678×3667

3160

MC120

99

10800-21600

120

4450×1678×3667

3525
