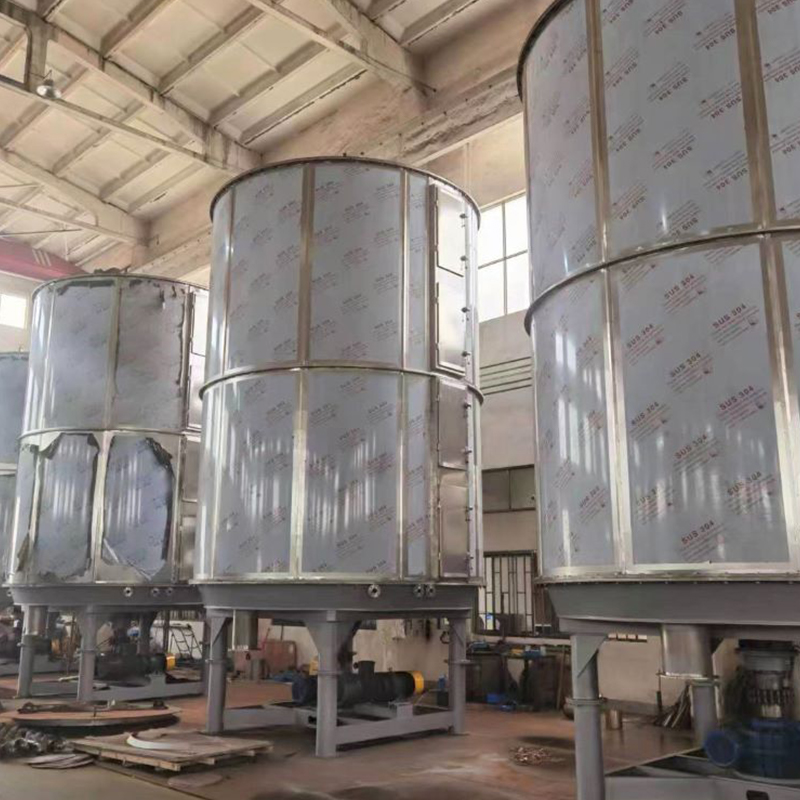

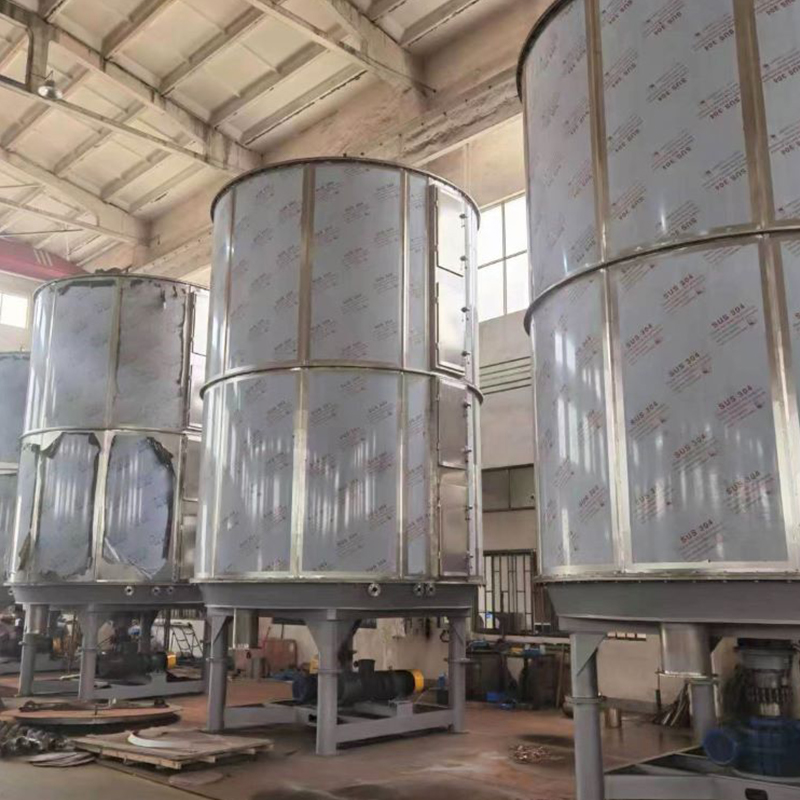

PLG Continuous Plate Dryer

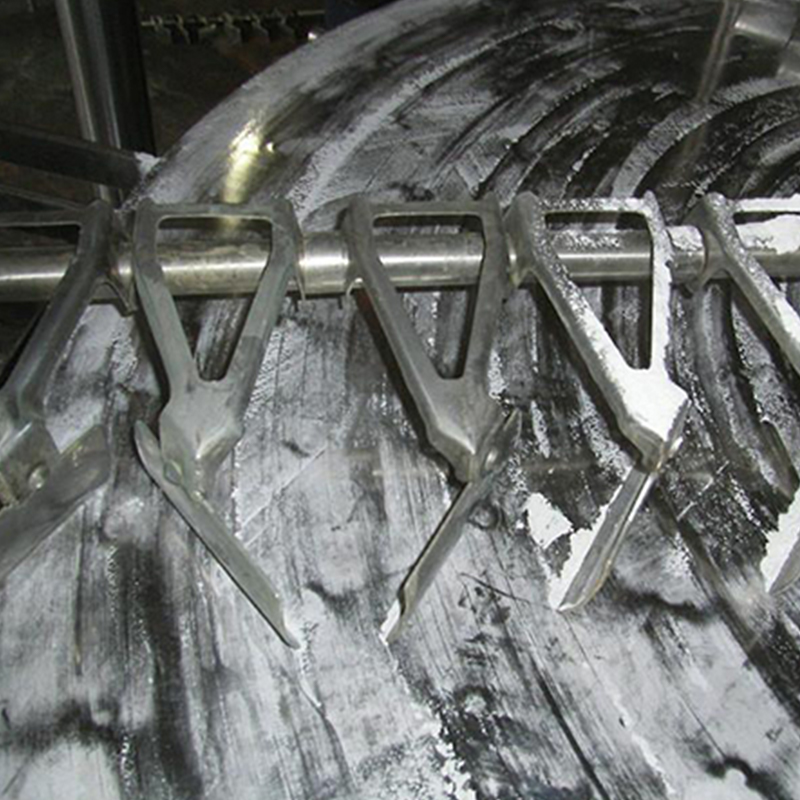

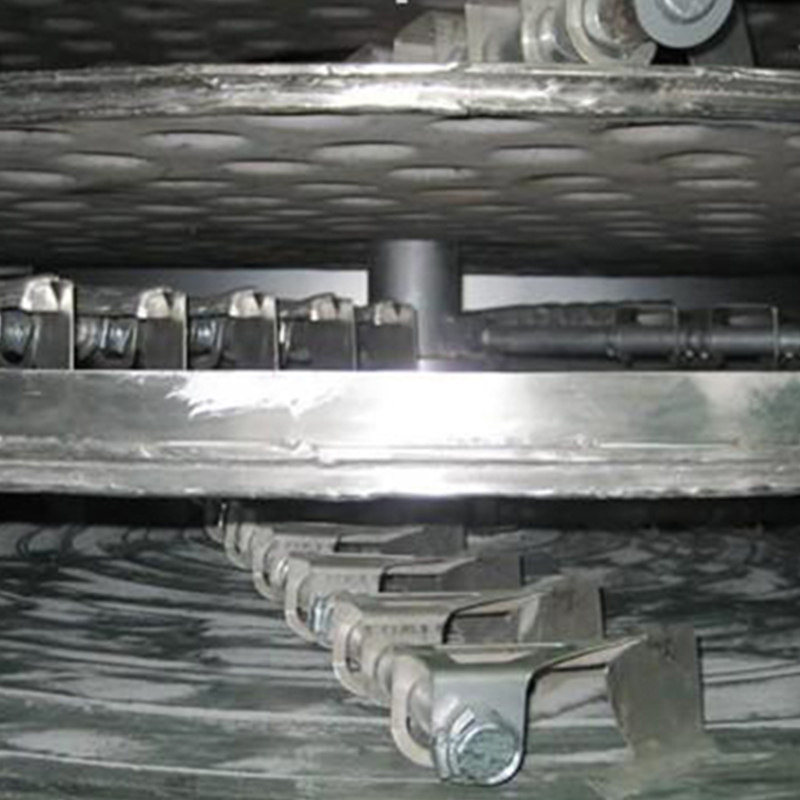

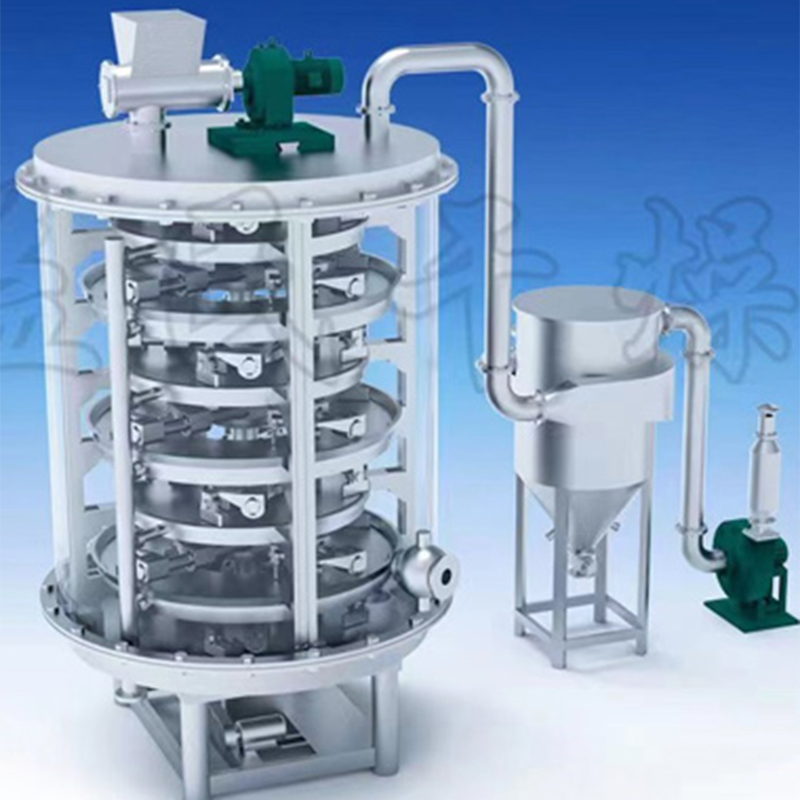

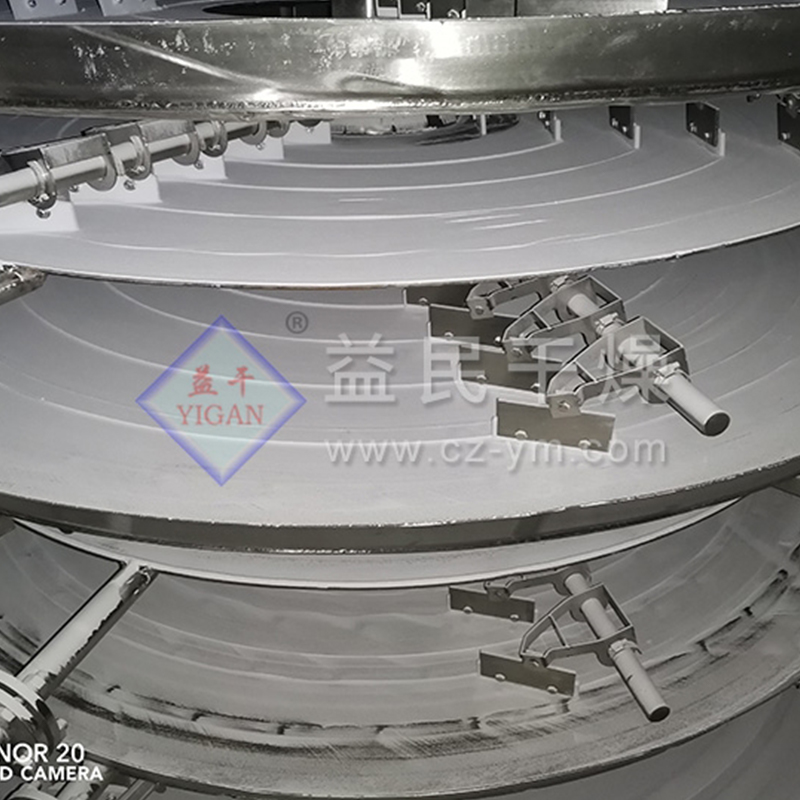

The PLG Continuous Plate Dryer is a highly efficient conductive continuous drying equipment tailored for diverse business sectors like chemical industry, medicine, pesticides, food processing, and agriculture. Its innovative design features ensure exceptional thermal efficiency, minimal energy consumption, compact footprint, straightforward configuration, user-friendly operation and control, and a conducive working environment. Available in three main types—normal pressure, airtight and vacuum—with specifications ranging from 1200 to 3000, this dryer offers versatility to suit various industry needs. Its customizable drying process allows optimization through adjustments in material layer thickness, spindle speed, rake arm numbers, and blade types, ensuring precise temperature control and material residence time adjustment for consistent, high-quality drying results without back-mixing. With a focus on ease of operation, low energy consumption, and environmental friendliness through solvent recycling and dust emission control, the PLG Disc Continuous Dryer stands as a reliable solution for drying, pyrolysis, combustion, cooling, and reaction processes across a spectrum of materials and industries, backed by its robust technical characteristics such as pressure design, heating medium options, material conveying systems, shell types, and optional air heater for enhanced drying efficiency during large-scale evaporation tasks.

Contact Us
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
  • PLG Continuous Plate Dryer
PREV：HG Roller Scraper Dryer
NEXT：DW Belt Dryer

Model 50 100 150 200 300 500 1000
Evaporated amount(kg/h) 50 100 150 200 300 500 1000
d(mm)ΦxH 1200 1800x 2200x 2400x 2800x 3400x 4600x
x8900 11500 13500 14800 15400 18800 22500
Power(KW) 8.5 14 22 24 30 40 82
Inlet air temperature(°C) 300-350
Water content (%) < 5(0.5)
Yield (%) >97
Heating by Electricity(KW) 75 120
Evaporation and Electricity(Mpa+KW) 0.5+54 0.6+90 0.6+108 Temperature is below 200°C, calculating in accordance with practical situation
Furnace(Kcal/h) 150000 300000 300000 400000 600000 1000000 1500000
