CT-C Hot Air Circulation Oven Dryer

The CT-C Hot Air Circulation Oven Dryer represents a significant advancement in drying technology compared to traditional methods. With a remarkable thermal efficiency increase from 3-7% to over 45%, and potentially exceeding 50%, this oven boasts a design that optimizes heat transfer and energy conservation. Developed in compliance with the RXH industry standard set by the State Administration of Medicine, the CT-C series features axial flow fans and automatic constant temperature systems, alongside optional computer control systems, ensuring precise and efficient operation. Its versatility spans across various industries including pharmaceuticals, chemicals, food, agriculture, and more, catering to heating, solidification, drying, and dehydration needs. Offering a broad spectrum of heating sources such as steam, thermal oil, electric heating, and far-infrared options, the oven's temperature adaptability ranges from ambient to 350℃. Equipped with forced ventilation, adjustable air distribution plates, and interchangeable drying trays, this equipment ensures uniform drying, low noise levels, stable performance, automatic temperature control, and easy maintenance.

Contact Us
  • CT-C Hot Air Circulation Oven Dryer

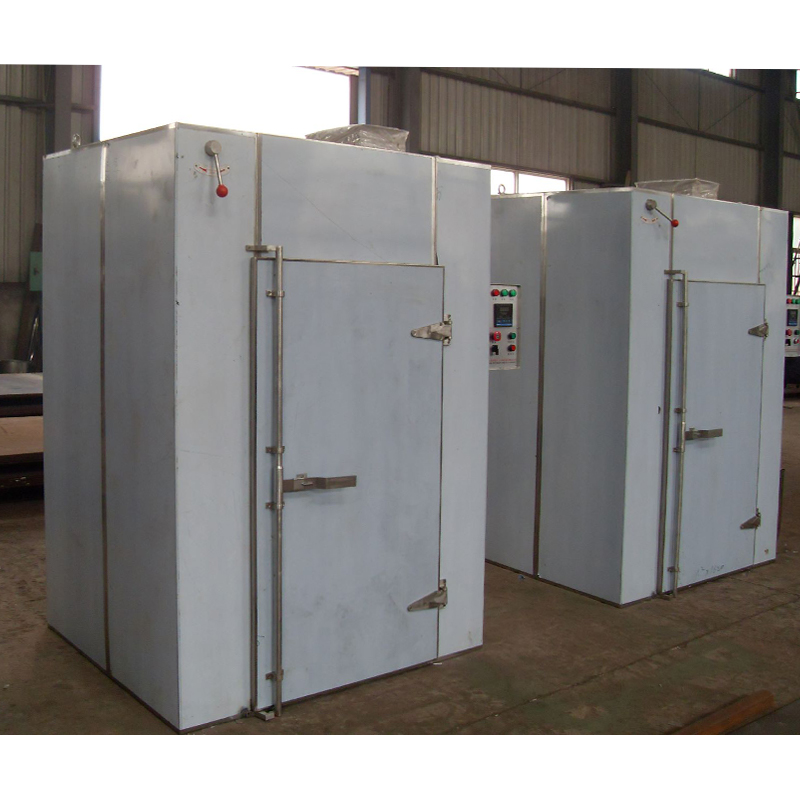

  • CT-C Hot Air Circulation Oven Dryer

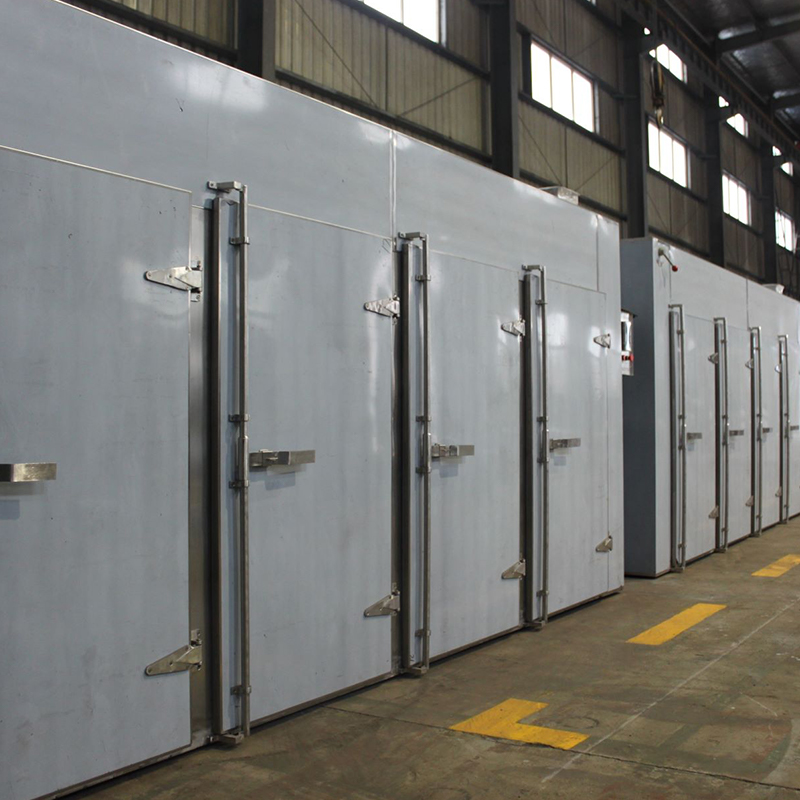

  • CT-C Hot Air Circulation Oven Dryer

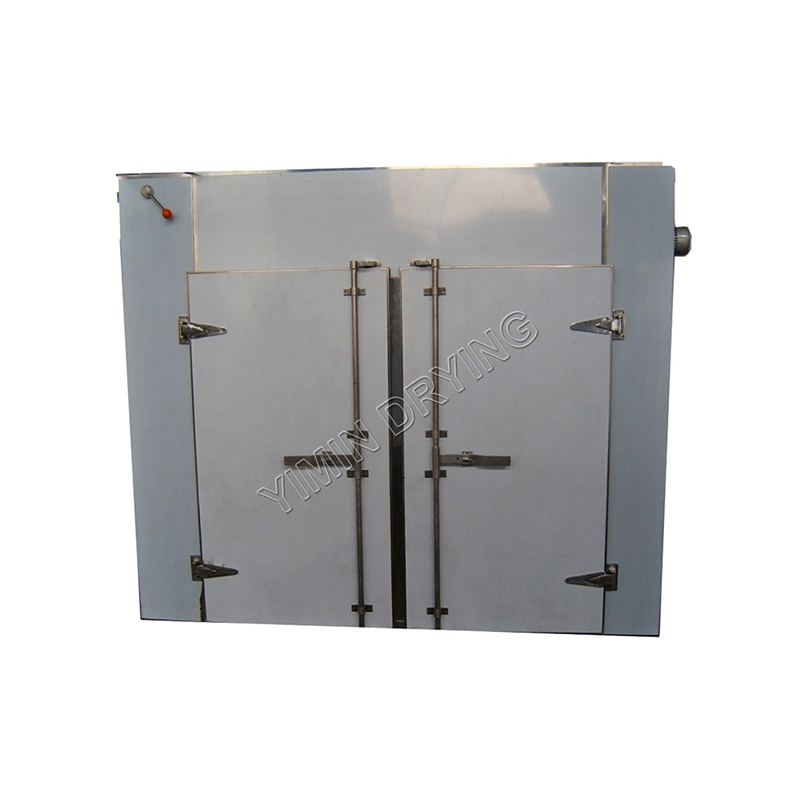

  • CT-C Hot Air Circulation Oven Dryer
  • CT-C Hot Air Circulation Oven Dryer
PREV：DW Belt Dryer
NEXT：No next article

Model Drying
area		 Capacity
(kg/batch)		 Fan
power
(kw)		 Steam
consumption
(kg/h)		 Radiation
area(m2)		 Electrical
heater
power(kw)		 Overall
dimension
L,W,H(mm)		 Door Trolley Tray Weight
(kg)
CT-C-0 7.1 60 0.45 10 10 6 1200x1000x1750 1 1 24 820
CT-C-1 14.1 120 0.45 18 20 15 2300x1200x2000 2 2 48 1580
CT-C-1A 14.1 120 0.45 18 20 15 1200x2200x2000 1 2 48 1580
CT-C-2 28.3 240 0.45x2 36 40 30 2300x2200x2000 2 4 96 1800
CT-C-2A 28.3 240 0.45x2 36 40 30 4460x1200x2290 4 4 96 1880
CT-C-3 42.4 360 0.45x3 54 80 45 3430x2200x2000 3 6 144 2100
CT-C-3A 42.4 360 0.45x3 54 80 45 2300x3200x2000 2 6 144 2210
CT-C-4 56.5 480 0.45x4 72 100 60 4460x2200x2290 4 8 192 2800
