JRFY Series Oil-fueled /Gas-fired Hot Air Furnace

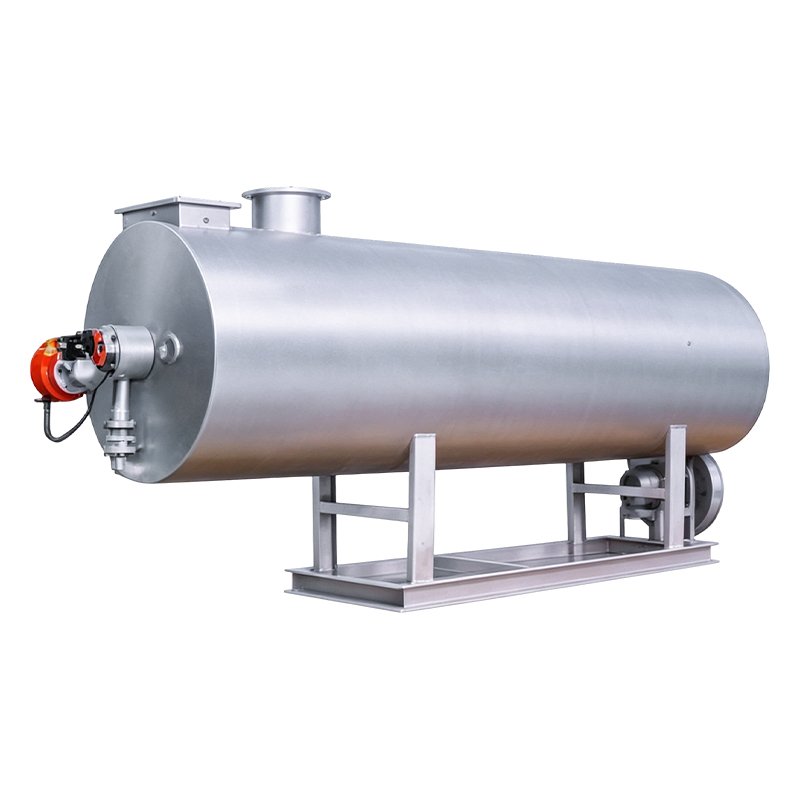

Model JRFY series horizontal metallic case oil fuel indirect fuel hot air furnace integrates combustion and heat exchange in its one body and is a hot air heating device with high thermal efficiency (Its thermal efficiency will be 65-85%). The output temperature of hot air will be 300 °C. If designed specially, it can be 500-8000 °C. Smoke and hot air has its own pass. The air through heat exchange is clean hot one. It can be equipped with different drying equipment. It is widely used for heating and drying of agricultural, medical and chemical products such as grain, seeds, feedstuff, fruits, dehydrated vegetables, passania fungus, agarics, white fungus, tea, tobacco leaf, foodstuff, medicines, and chemical raw materials.

Features
1. Convenient in operation and low in labor strength.
2. The equipment is compact and covers small area.

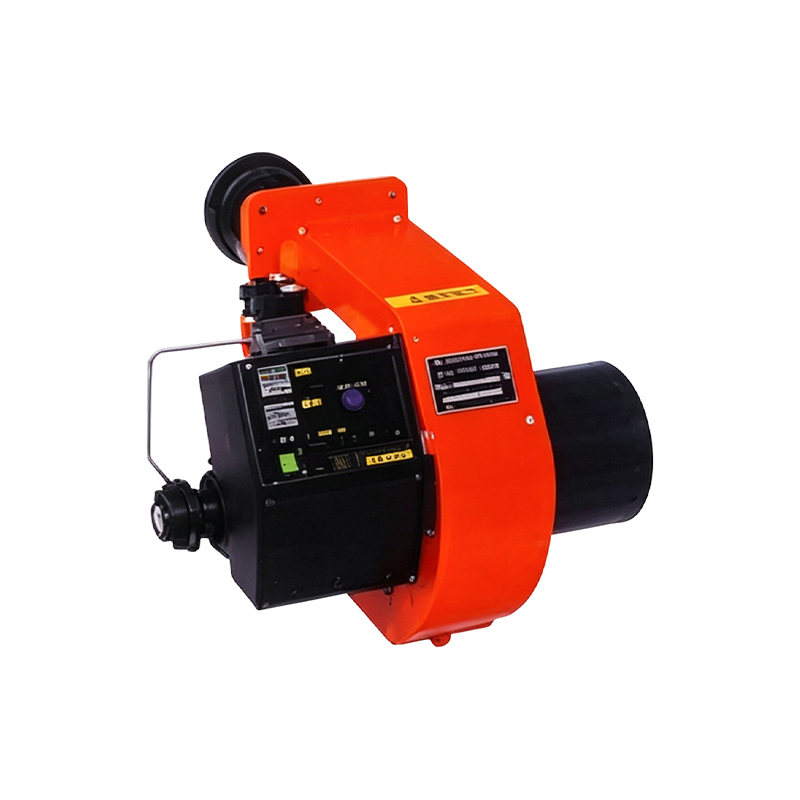

3. Being adopted imported combustor, its combustion is full and no environment pollution.

Contact Us
  • JRFY Series Oil-fueled /Gas-fired Hot Air Furnace
  • JRFY Series Oil-fueled /Gas-fired Hot Air Furnace
PREV：No previous article
NEXT：MC Series Pulse Bag Filter

Type

Burner type

Fuel quantity

Heat input quantity

Outside measurement

Hot wind jaws L×W

Gross

JRFY1

MIN OR1

1.3-1.6

1

1000×1000×1000

Φ200

150

JRFY4

MIN OR4

5-6.5

4

1700×1000×1600

140×160

1100

JRFY10

MAI OR 12AB

13-16

10

2100×1300×1600

180×200

1970

JRFY20

MAI OR 25AB

26-32

20

2800×1400×1700

200×250

2260

JRFY30

MAI OR 35AB

39-48

30

3400×1500×1800

250×300

3160

JRFY40

MAI OR 45AB

52-64

40

4020×1700×1900

300×400

4750

JRFY60

MAI OR 60AB

78-96

60

4800×1900×2100

400×500

5650

JRFY100

MAI OR 120AB

130-160

100

5400×2100×2300

550×650

6550

JRFY200

MAI OR 300AB

260-320

200

6000×2500×2400

750×900

7980

JRFY360

MAI OR 400AB

468-720

360

7200×2900×2600

900×1200

9860

Notes:
  1. The output temperature means the raised temperature from 200 °C of input temperature
  2. The fuel value of oil is calculated based on 41800Kj/kg.
  3. The layout of equipment will be provided as request.
  4. The default brand of Burner is RIELLO, ITALY. Other type can also be used.
