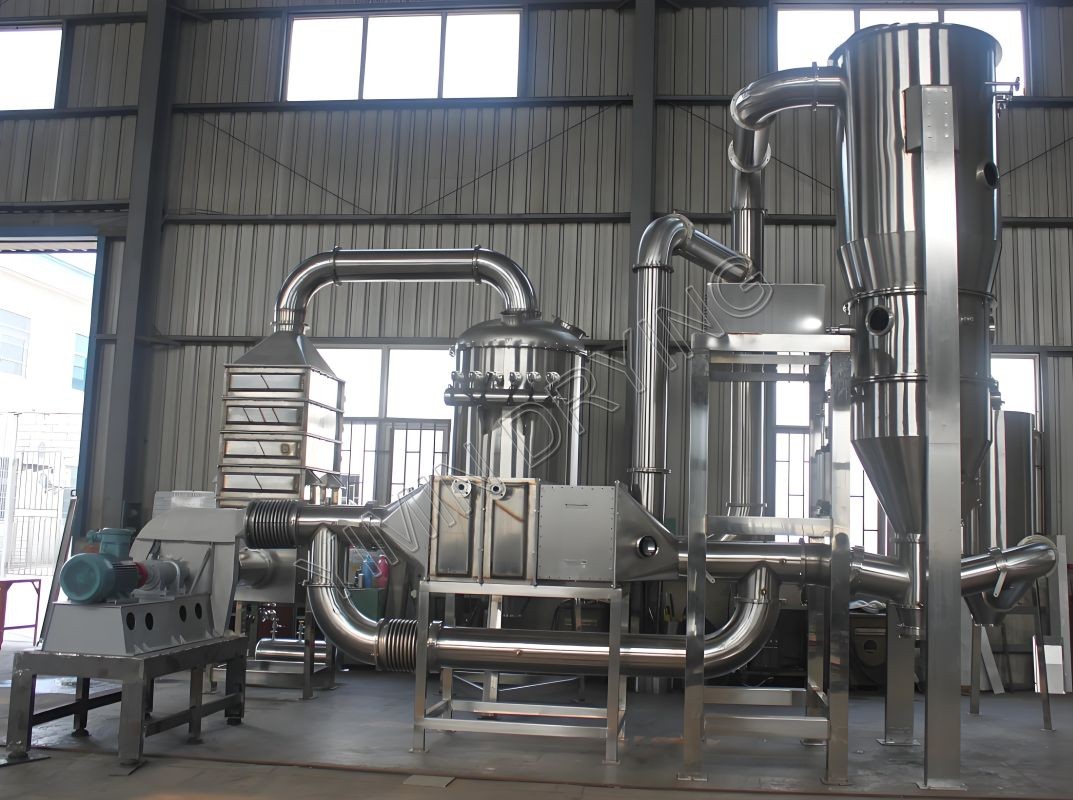

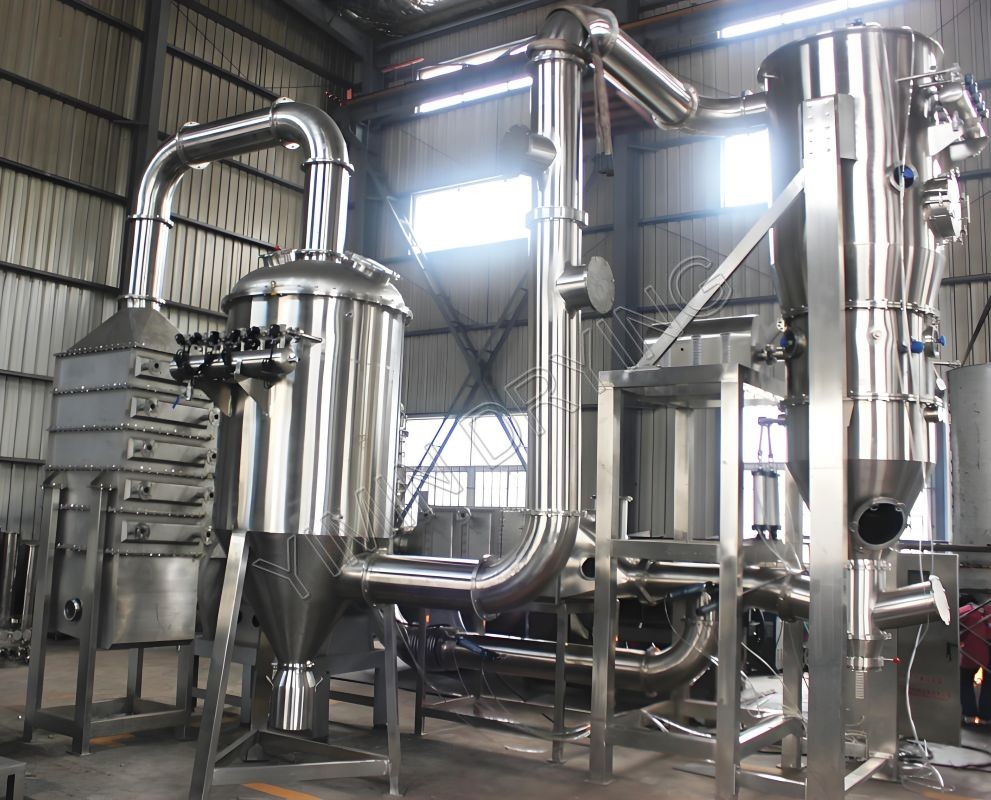

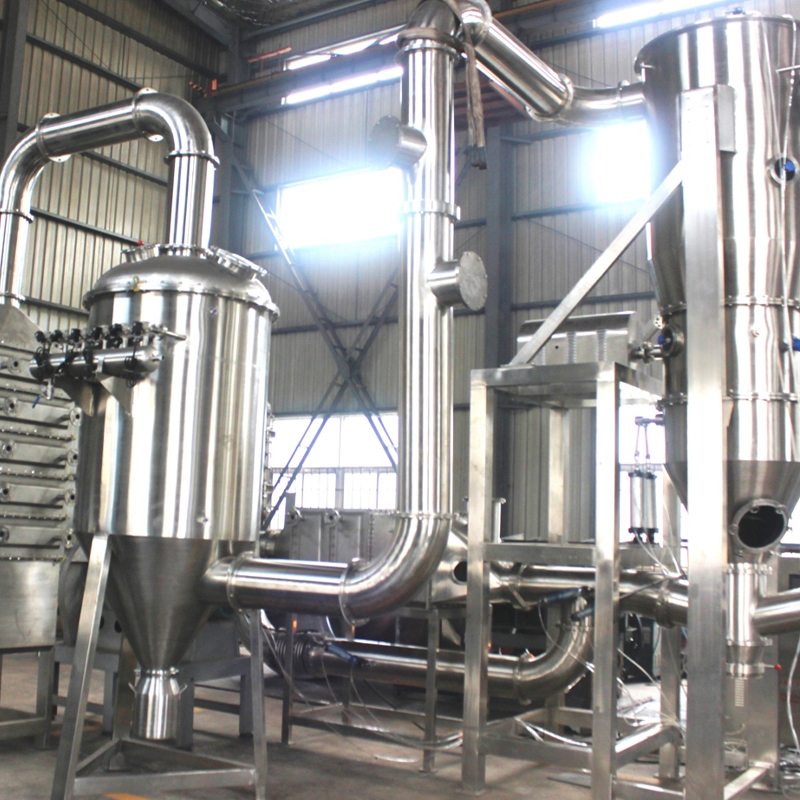

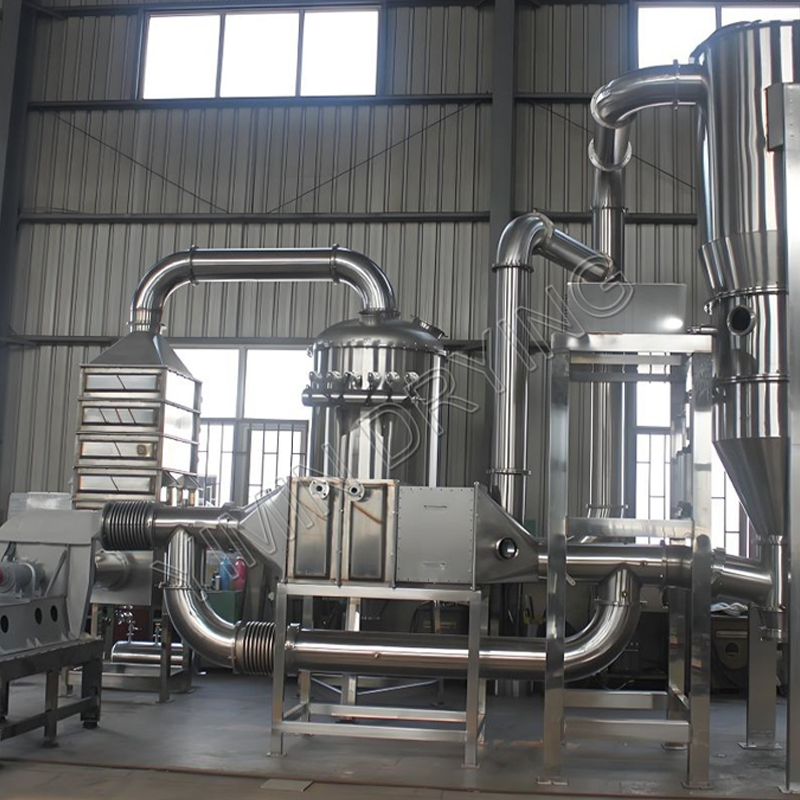

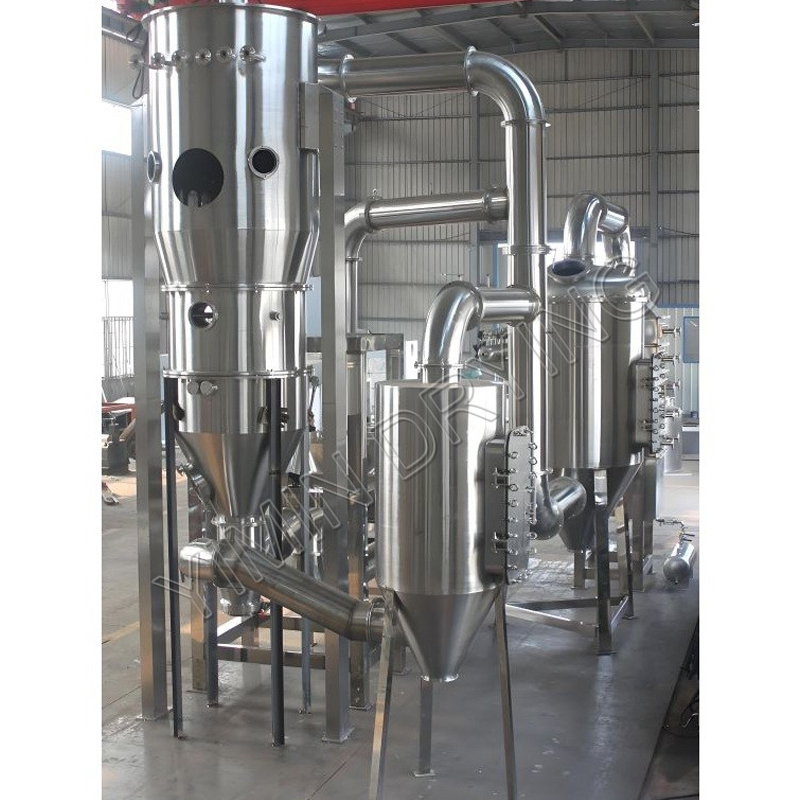

BLGZ Series Closed-loop Circuit Fluid Bed Dryer

Applications

• Mainly used for solvent recover and drying of material with solvent.
• For drying of material with solvent from Sway Granulator and high-speed mixing granulator.
• For drying of wet granules and powder granules with solvent in food stuff, chemical industry, pharmaceutical industry and so on.
• For drying of large granules, small blocks and Low-viscosity

Features and Advantage
1.High efficiency
This machine is fully enclosed structure, no dead corner, both air exhaust system and air in system takes high-temperature and high-efficiency filter. The whole system has 3 levels of dust catcher, with high-efficiency dust catcher, easy to discharge and clean. After drying finished, because of blowback system, dust elimination is more thoroughgoing, reducing cleaning frequency, which can reduce labor intensity and avoid pollution of different products, Low viscosity, meeting GMP standards.
This machine can work continuously and steady in a long term, high degree of automation. It not only can dry, cool solvent, but also can cool raw material, drying efficiency is higher than other dryer, 4 to 5 times drying speed. And, the finished products have good quantity, which can create bigger product value for the user.
According to the user’s requirement, vacuum feeder, vacuum discharger for optional, to enhance automatization degree.
2. Safety
Because of flammable and combustible dangerous of organic solvent, this machine take Safety technologys including on-line Oxygen checking, explosion-proof, Explosion venting and so on. Through intelligentized controltechnology, to monitor Oxygen residues/Pressure balance in the system and automatic modulation control. When air(oxygen) content exceed 0.5%(v/v),oxygen checking device open the Replenishing valve to supply fresh nitrogen by control system, to recovery the oxygen residues to a safety value(closed-circuit system is designed into positive pressure,oxygen entry into circulation system by material feeding).When air pressure inside the system exceed setted value(air pressure balance is setted into 0.02mpa),explosion venting device will automatically open decompression Pneumatic valve to exhaust some air by intelligentized control .The explosion-proof and explosion venting system is another safety technology of this machine, that is when certain electrical equipment or key device damaged, the system is out of normal working and air pressure up to safety ultimate value(≤0.05Mpa),explosion-proof  and explosion venting system will be automatically opened, power  cutted off  and pipe valve closed, there is no probability of solvent reacting with oxygen,which avoid fire damagesor explosion during machine working.to make sure safety production.
3. Saving energy
This machine is full closed system. Hot air through net board blow up the material. Hot air contact with material fully. The process of heat transfer is enhanced. At a Few air condition, a high air moisture can be got, so Only Micro positive pressure during working, needed air quantity is small. Fan power of this machine is smaller and less noise. At the meantime,
Hot air with solvent after drying is separated by condensator. The recoveryed solvent can be reused. So saving energy  and production cost. Also, Low dew point nitrogen is sent to air heater for cyclic utilization by fan. Compared with common dryer, thermal efficiency enhanced, power consumption reduced, so heat consumption and production cost saved.
4.Environmental protection
This machine recovery the solvent from raw material during drying process based on solving the problem hard drying and Heavy pollution. At the meantime, zero exhaust avoid environmental pollution because of waste gas.

Technical parameters

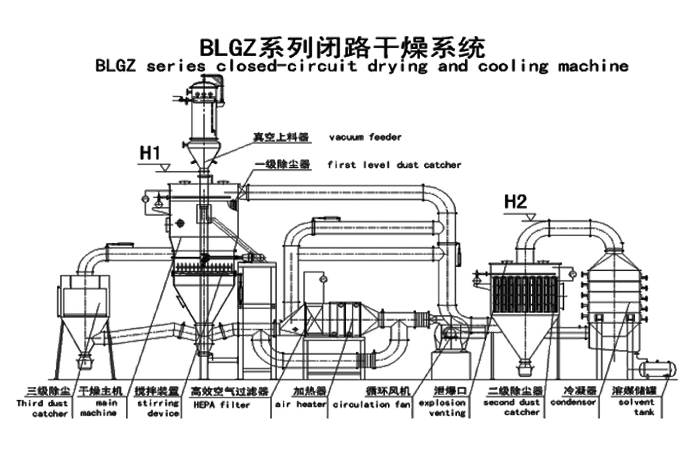

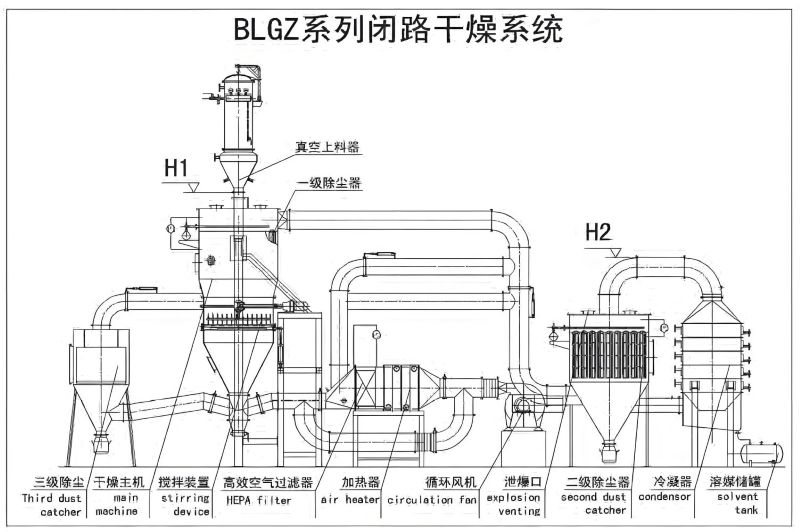

Flow chart drawing
