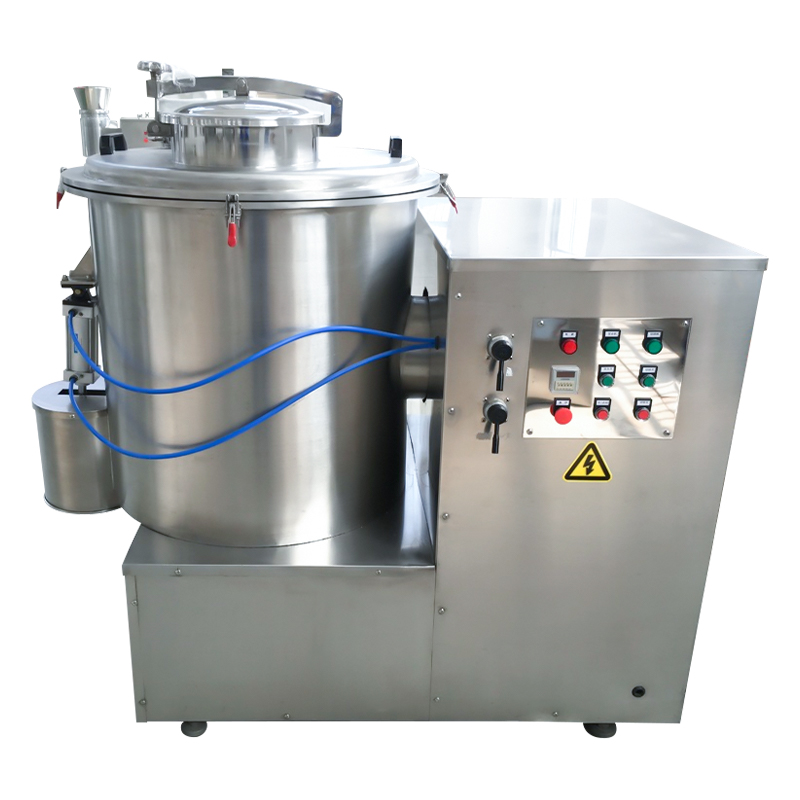

GHJ Series High Speed Mixer

Applications
It is suitable for pharmaceutical industry, foodstuff industry, chemical industry and so on. The granule is made from powder to damp granule in which the adhesive should be injected in it.

Work principle
GHJ Vertical High Speed Mixer consists of the feeding blades at bottom and high speed crushing blades. The blades at bottom make the material raise along the wall of mixing tank continuously and the high speed crushing blades crush the material.It makes the material circulating as vortex shape, and mixed uniformly in a short time.

Features
1. Due to centrifugal force, the feed blade at the bottom feed material continuously from bottom upward along tank wall. The upper material fall down from the center, making the material in spiral shaped
2. High-speed cutting blade crush block material into pieces thoroughly
3. Because of the high-speed rotating of the two blades, material can be mixed uniformly in a short time. Many other mixers can’t reach Its mixing speed and degree of uniformity. Material mixed by this machine contain no granules.
4. Material discharged by cylinder, fast discharging, easy to clean

  • GHJ Series High Speed Mixer

Name

Working volume(L)

Total power

weight

Overall dimension

GHL-350

350

13.2

600

1500x1090x1200

GHL-600

600

17.2

900

1500x1090x1300
