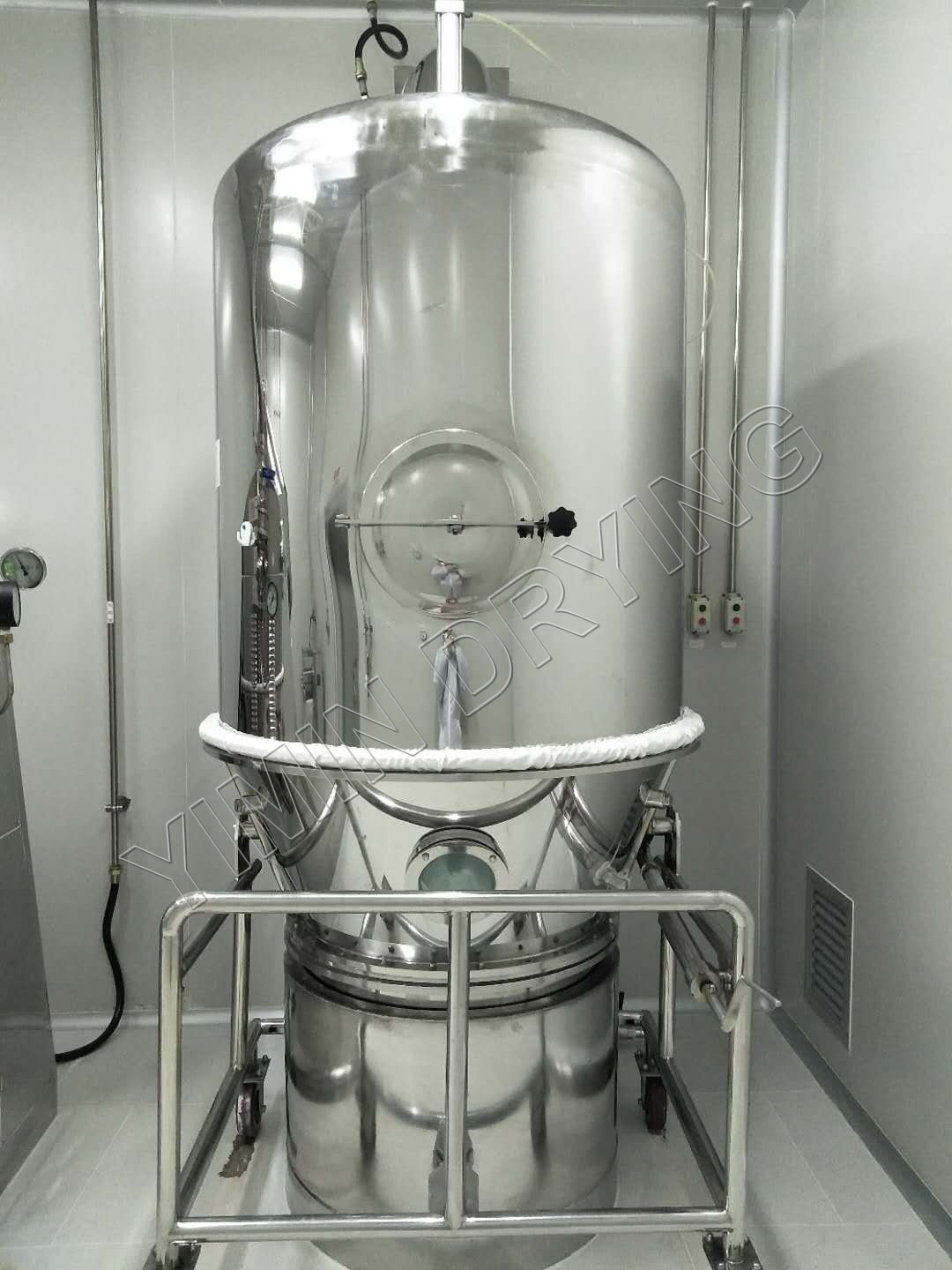

GFG Batch Fluid Bed Dryer

Our GFG Batch Type Fluid Bed Dryer is a versatile solution designed for drying various materials including mechanical screw extrusion granules, rocking granules, wet high-speed mixing granulation granules, and powdery substances across industries such as medicine, food, feed, and chemicals. Its capabilities extend to handling large particles, small lumps, sticky lumps, and materials prone to volume changes during drying like konjac and polyacrylamide. Its standout features include a circular fluidized bed structure to eliminate dead corners, a hopper equipped for stirring to prevent material agglomeration and ditch formation, and a tipping and unloading section for convenient, rapid, and thorough discharge. The dryer operates under closed negative pressure, with filtered airflow, ensuring ease of operation, cleanliness, and compliance with stringent "GMP" standards. Notably, it boasts rapid drying with uniform temperatures, typically completing each batch within 20-30 minutes.

Contact Us
  • GFG Batch Fluid Bed Dryer
  • GFG Batch Fluid Bed Dryer
  • GFG Batch Fluid Bed Dryer
PREV：ZLG Vibrating Fluid Bed Dryer
NEXT：FG Vertical Fluid Bed Dryer

Item Specification
Feeding capacity kg /batch 60 100 120 150 200 300 500 ≥800
Power of fan kw 11 15 18.5 22 22 30 37 By URS
Power of stirring kw 0.55 1.1 1.1 1.1 1.1 1.1 1.5
speed of stirring rpm 11
consumption of steam kg/h 141 170 170 240 282 366 451
working time min 15-30
Installation size for reference H1 mm 2676 2842 2862 2940 3014 3300 3650
H2 mm 2366 2532 2552 2630 2704 2800 3150
A mm 2440 2540 2540 2740 2840 2940 3140
